-Model number (body color): PN63-S1-S3092AD (black)
——————————————–
CPU installed: Intel® Core ™ i3-1115G4 processor
Operating frequency: 3.0 GHz (maximum boost clock 4.1 GHz)
Cache memory: 6 MB Intel® Smart Cache
Installed memory: 8GB (maximum 64GB) / SO-DIMM slot x 2 (empty slot x 1)
Function: Intel® UHD Graphics (with built-in CPU)
On-board storage: PCIe 128G x 1
interface
Front: USB 3.2 Gen2 Type-C x 1, USB 3.2 Gen2 x 1, Audio Jack x 1
Side: Kensington Lock x 1, 3in1 Card Reader x 1 (Micro SD / Micro SDHC / Micro SDXC)
Back: Mini Display Port 1.2 x 1, USB 3.2 Gen2 x 2, HDMI 1.4 Port x 1
DP 1.4 x 1, RJ45 2.5G LAN x 1, DC-in x 1, Pad lock ring x 1
Network function: 10/100/1000/2500 Mbps
Wireless LAN function: Wi-Fi 6
Bluetooth function: Bluetooth® 5.2
Installed OS: Windows 11 home
Power consumption: up to about 90W
VESA mount: Compatible
Size: Width 130mm x Depth 120mm x Height 58mm
Mass: about 0.9kg
Price: Open price
Scheduled release date: Friday, July 22, 2022
Product page: https://www.asus.com/jp/Displays-Desktops/Mini-PCs/PN-PB-series/Mini-PC-PN63-S1/
——————————————–
-Model number (body color): PN63-S1-S5093AD (black)
——————————————–
CPU installed: Intel® Core ™ i5-1135G7 processor
Operating frequency: 2.4 GHz (maximum boost clock 4.2 GHz)
Cache memory: 8 MB Intel® Smart Cache
Installed memory: 8GB (maximum 64GB) / SO-DIMM slot x 2 (empty slot x 1)
Function: Intel® Iris® Xe Graphics (with built-in CPU)
On-board storage: PCIe 128G x 1
interface
Front: USB 3.2 Gen2 Type-C x 1, USB 3.2 Gen2 x 1, Audio Jack x 1
Side: Kensington Lock x 1, 3in1 Card Reader x 1 (Micro SD / Micro SDHC / Micro SDXC)
Back: Mini Display Port 1.2 x 1, USB 3.2 Gen2 x 2, HDMI 1.4 Port x 1
DP 1.4 x 1, RJ45 2.5G LAN x 1, DC-in x 1, Pad lock ring x 1
Network function: 10/100/1000/2500 Mbps
Wireless LAN function: Wi-Fi 6
Bluetooth function: Bluetooth® 5.2
Installed OS: Windows 11 home
Power consumption: up to about 90W
VESA mount: Compatible
Size: Width 130mm x Depth 120mm x Height 58mm
Mass: about 0.9kg
Price: Open price
Scheduled release date: Friday, July 22, 2022
Product page: https://www.asus.com/jp/Displays-Desktops/Mini-PCs/PN-PB-series/Mini-PC-PN63-S1/
——————————————–
-Model number (body color): PN63-S1-S7094AD (black)
——————————————–
CPU installed: Intel® Core ™ i7-1165G7 processor
Operating frequency: 2.8 GHz (maximum boost clock 4.7 GHz)
Cache memory: 12 MB Intel® Smart Cache
Installed memory: 16GB (8G x 2) (maximum 64GB) / SO-DIMM slot x 2 (empty slot x 0)
Function: Intel® Iris® Xe Graphics (with built-in CPU)
On-board storage: PCIe 256G x 1
interface
Front: USB 3.2 Gen2 Type-C x 1, USB 3.2 Gen2 x 1, Audio Jack x 1
Side: Kensington Lock x 1, 3in1 Card Reader x 1 (Micro SD / Micro SDHC / Micro SDXC)
Back: Mini Display Port 1.2 x 1, USB 3.2 Gen2 x 2, HDMI 1.4 Port x 1
DP 1.4 x 1, RJ45 2.5G LAN x 1, DC-in x 1, Pad lock ring x 1
Network function: 10/100/1000/2500 Mbps
Wireless LAN function: Wi-Fi 6
Bluetooth function: Bluetooth® 5.2
Installed OS: Windows 11 home
Power consumption: up to about 90W
VESA mount: Compatible
Size: Width 130mm x Depth 120mm x Height 58mm
Mass: about 0.9kg
Price: Open price
Scheduled release date: Friday, July 22, 2022
Product page: https://www.asus.com/jp/Displays-Desktops/Mini-PCs/PN-PB-series/Mini-PC-PN63-S1/
——————————————–
〇Main features of the product
Easy customization and widespread possibilities
An ultra-compact computer with powerful performance for a wide range of home and business applications.
Equipped with the latest 11th Generation Intel® Core ™ Processors and support for high-speed 3200MHz DDR4 memory, the ASUS Mini PC PN63-S1 not only supports demanding workloads, but also uses a small size that minimizes desk space. Therefore, it is suitable for applications that conventional PCs could not support, from digital signage to home theaters.
performance
Although it is compact, it has excellent performance. The latest 11th generation Intel® Core ™ processor with high-capacity high-speed RAM, Intel® Iris® Xe, and multiple storages for maximum performance, ultra-fast PCIe® SSDs for fast boot, and fast loading of apps. To realize.
Small but powerful
Equipped with the 11th generation Intel® Core ™ processor with excellent performance and smooth processing power, the Mini PC PN63-S1 with built-in Intel® Iris® Xe graphics * for high-speed video processing concentrates your work. It is a reliable existence even in such a situation.

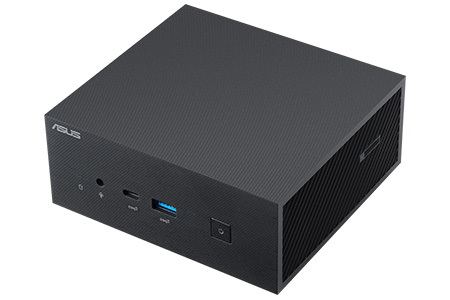

Modern space-saving design
A space-saving all-in-one solution that can be easily installed in home, office and retail environments with beautiful lines and a stylish and sophisticated design.
The body is 120 x 130 x 58 mm palm-sized, has a capacity of 0.9 liters, and can be mounted on the back of a display or TV using a VESA mount.
